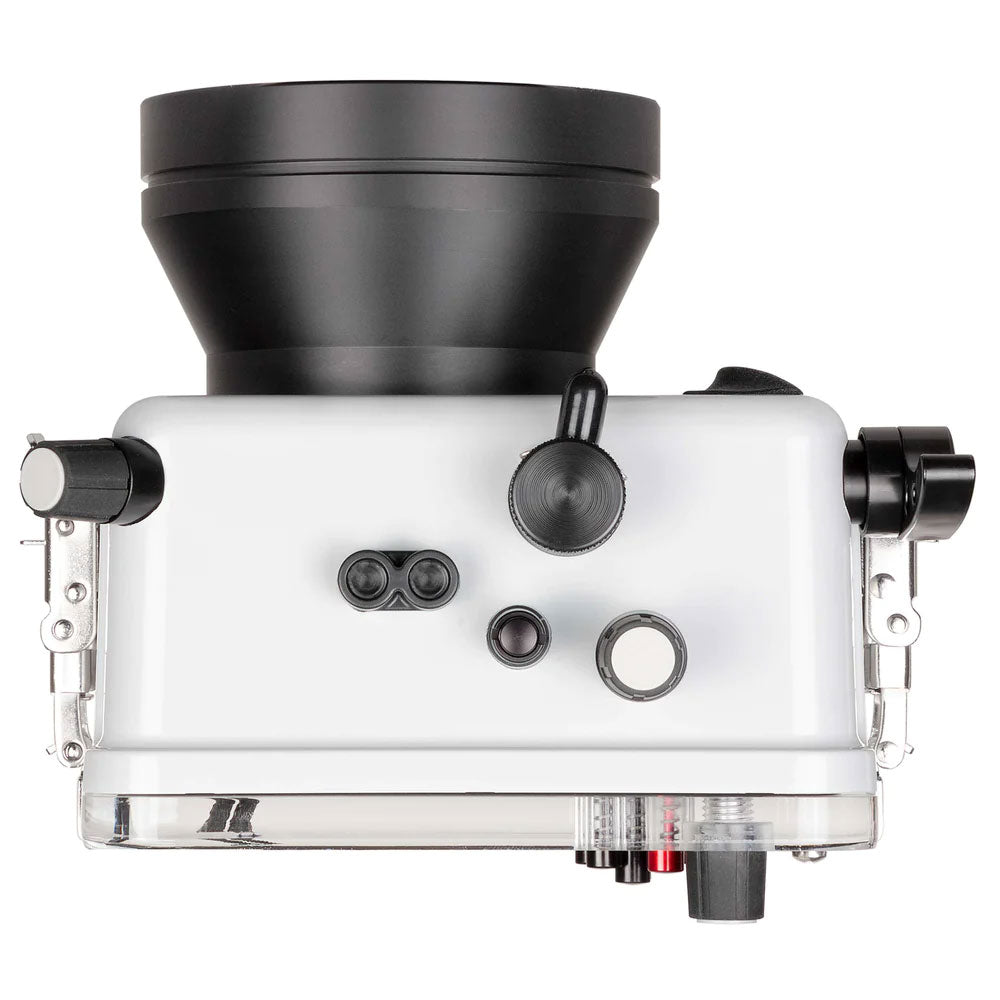

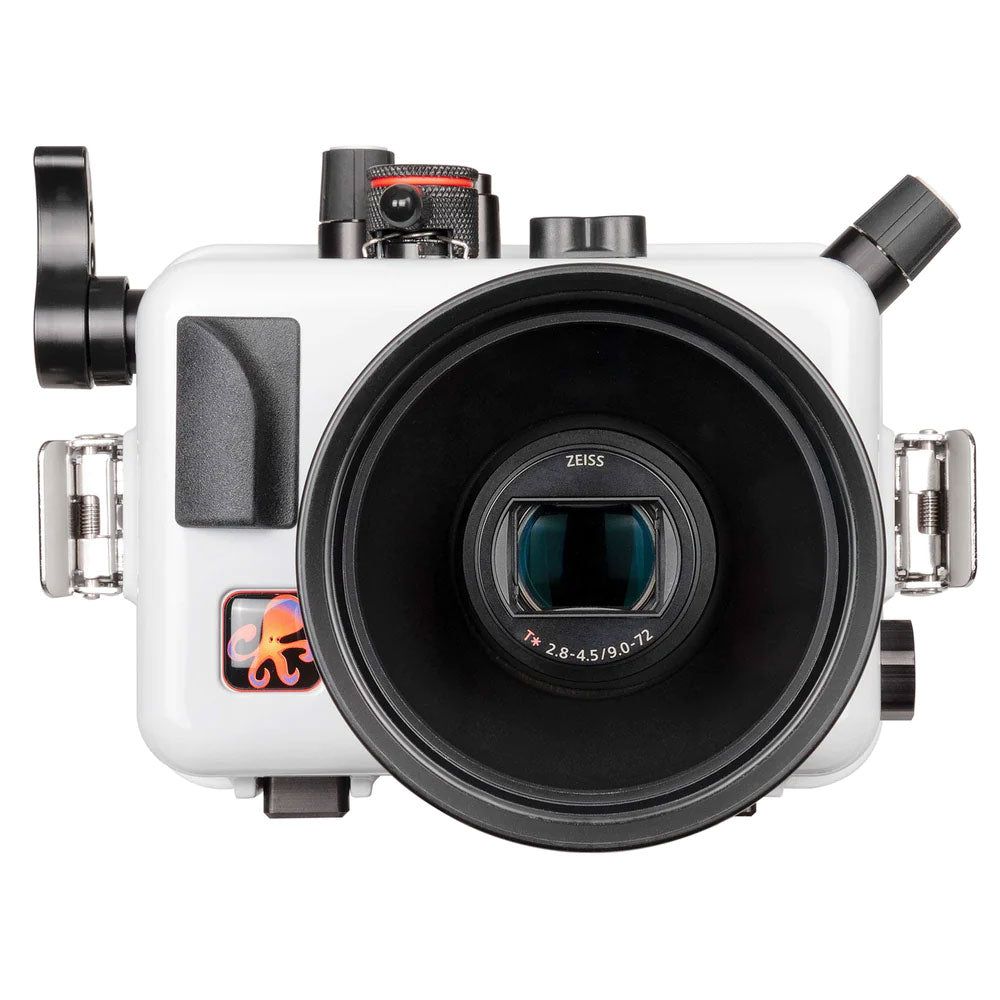

A full featured and durable underwater housing for Sony Cyber-shot DSC-RX100 VI and DSC-RX100 VII digital cameras. Perfect for scuba, snorkel, surf, pool, and any application in or around the water.
Construction
Ikelite's specially formulated ABS-PC blend housing is highly durable yet lightweight for travel. The light color keeps your camera cooler when shooting in warm, sunny environments.
Lens Support
Add the press-fit Macro Adapter # 9306.82 with any 67mm threaded macro wet lens for incredibly super macro photography. Compatible wet lenses include but are not limited to the INON UCL-165, Subsee Magnifier, Saga close up lenses, Nauticam CMC-1, and others.
The optional WD-4 Wide Angle Dome # 6430.4 provides a wider angle of view underwater without the edge distortion, vignetting, or weight typically associated with an external wide angle wet lens. The WD-4 is a 0.75x magnification factor and simply slides on and off of the housing's lens port.
Optional 6" dry dome
The DC3 6" Dome Port # 6403 offers the best of everything: wide angle, macro, and over-under all on one dive. This special dome port replaces the housing's standard port and provides sharp 24mm wide angle and is perfect for split shots (half-in, half-out of the water). Approximately 3/4 of the camera's zoom range is usable behind the dome and macro images can be captured with the dome installed.
Optional wide angle port
The optional Wide Angle Port M67 for Sony RX100 VI # 9306.02 can be used in place of the housing's standard port for use of 67mm threaded external wide angle wet lenses. This port has been optimized to provide the best combination of wide angle and macro photography. The shorter port length accommodates an effective zoom range of 24-70mm.
This port is optimized for use with wide angle wet lenses designed for the 28mm equivalent focal length, including the INON UWL-H100, Nauticam WWL-1, and others. Some vignetting (dark shadows around the edges of the image will be present at wider focal lengths. We recommend zooming to eliminate vignetting or cropping your images in post-production.
The front of the port also accepts 67mm threaded macro wet lenses by INON, Subsee, Saga, Nauticam, and others.
The standard lens port is removed and the Wide Angle Port M67 simply threads into the front of the housing for quick and easy installation. The camera cannot be zoomed past 70mm with this port attached. The camera will shut down if zoomed past this point.
Wi-Fi Transfer
Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.
Compatibility
Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.
Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. We are not aware of any other models which may be used in or adapted to this housing.
Sprcifications
| Controls | Controls for all camera functions except Flash switch and Viewfinder switch; camera's built-in flash may be extended during installation |
| Internal Flash | No, trigger external Strobe only. |
| Depth rating | 60m / 200 ft. |
| Underwater Weight | Slightly positive buoyancy in fresh water |
| Cameras | Sony Cyber-shot RX100 Mark VII
Sony Cyber-shot RX100 Mark VI |
| Strobes | Optical Fiber (2x YS Fiber Socket)
Internal flash can be used to trigger external Strobe by optical fiber, please refer to accessories. |
| Wet Lenses | M67 (67mm) Thread(Optional Ikelite M67 Macro Adapter for 3.9" Flat Ports) |
| Tray | Two 1/4" thread |
| Spare O-Ring | Ikelite O-Ring #0109 |
| Dimensions | 6.1 x 5.1 x 6.8" / 155 x 130 x 173mm |
| Weight | 2.8 lb / 1,270g |
| Materials | Polycarbonate, ABS, clear plate glass, EPDM |
| Warranty | 1 Year |
Item Included
Housing
Rear o-ring # 0109
Vinyl port cover # 0200.08
Silicone lubricant 1cc tube
