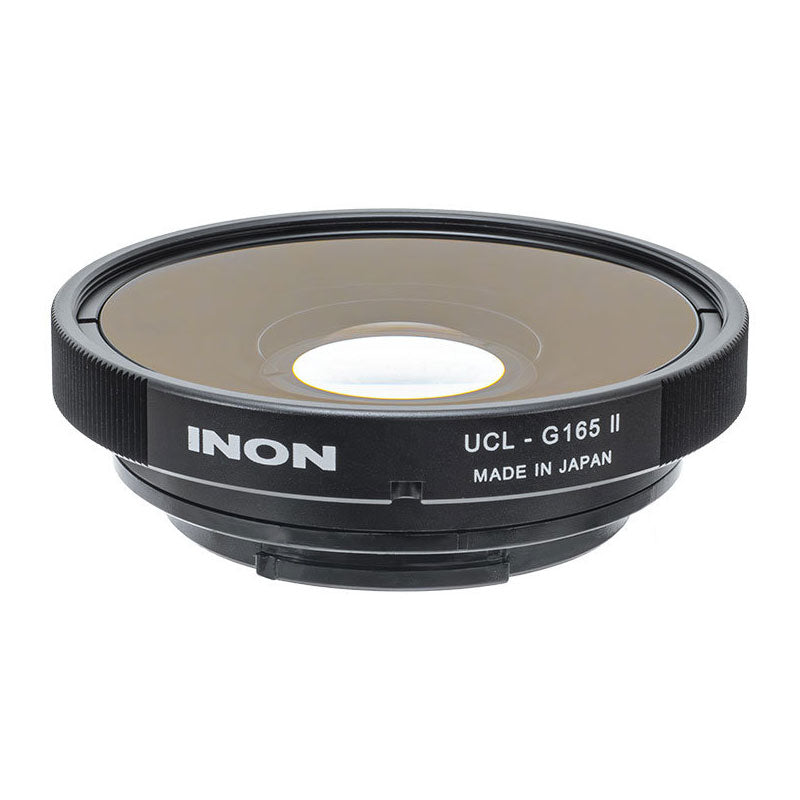

INON UCL-G165 II SD Underwater Macro Lens for Close-Up Photography - Perfect for Scuba Diving, Snorkeling & Marine Life Photography

The INON UCL-G165II underwater wide close-up lens enables you to shoot a subject from close range of the lens to capture the subject larger in a frame.

Get Closer Minimum Focus Distance

An action camera is a deep focus camera which does not require focusing but prevents a subject gets in focus in close range (within 60cm/2ft range in theory for GoPro® camera) thus not usable for underwater macro shooting. Using standard macro lens for a compact digital camera would not help the situation as it would create vignetting and very shallow depth of field preventing comfortable focusing. The UCL-G165 II lens is so-called "wide close-up lens" specifically designed for action cameras based on their optical characteristic. The depth of field (DoF) underwater will be 10cm/3.9in to 35cm/1.1ft when using the lens for GoPro® HERO12 Black supporting closer minimum focus distance underwater to capture wow photos/clips.

* The depth of field (DoF) on land is theoretical value based on focal length/aperture of camera lens and pixel pitch of the image sensor. DoF underwater is measured from "the forefront of the lens".



Ideal Angle of View for Macro Shooting

Maximum angle of view of GoPro® HERO12 Black is approx. 156° on land which will narrow down to approx. 94° when the camera is housed in genuine dive housing and submerged due to different refraction index. The INON UCL-G165 II slightly increases angle of view underwater to 110° to capture dynamic scene played by a subject as the lens frames subject larger than UFL-G140 SD which delivers ultra wide 140°.

*Measured angle of view by INON on land or calculated angle of view underwater based on the measured angle of view on land. Not confirmed by camera manufacture.
Coverage by UCL-G165 II

Professional-level Image Quality

Optics is constructed of 2 elements in 2 groups. All elements are made from high refractive index glass lens to minimize whole size dramatically without sacrificing performance. Both lens elements have anti-reflection coating on all surfaces to elicit combined master lens performance with less ghost/flare.

* Using with other than INON SD Front Mask may result in a significant image quality degradation due to a lack of optimization of the mounting distance between the lens and the adapter. Such usage is not covered by warranty.

Speedy Lens Exchange by SD Mount

Bayonet INON SD Mount compatible to support friendly and speedy lens exchange underwater. Compatible with AD Lens Holder to hold a lens when not in use.

Specifications

Size	77mm / 3.0in (Diameter), 25.2mm / 1.0in (Length)
Weight	[air] 200g / 7.1oz [underwater] approx. 121g / 4.3oz
Mount system	INON SD Mount
Depth rating	60ｍ / 196.9ft
Body material/finishing	Corrosion-resistant aluminum alloy / rigid black alumite, PC etc.
Lens material/coating	Optical glass / both side coating
Lens construction	2 groups 2 elements
Max. view angle (*1)	165mm (underwater)

Mfr.	Camera	Depth of field with UCL-G165 SD (*2)
GoPro (*3)	HERO12 Black HERO11 Black HERO10 Black HERO9 Black HERO8 Black HERO7 Black HERO6 Black HERO5 Black HERO4 HERO3+ Black HERO HERO+ HERO+ LCD	10cm / 3.9in to 35cm / 1.1ft
	HERO3 BLACK	7cm / 2.8in to ∞
OLYMPUS	TG-Tracker	2cm / 0.8in to 15cm / 5.9in
SONY	FDR-X3000 HDR-AS300	10cm / 3.9in to 35cm / 1.1ft

Usage Notice

When using for GoPro
* Set the camera's field of view (FOV)/Digital Lenses to [Wide] for wide-angle macro photography that prioritizes angle of view, or [Narrow] for magnification-oriented photography.
* [SuperView™] mode is not recommended. The SuperView™ mode stretches both ends of the image inside the camera to fit into a 16:9 aspect ratio from originally obtained 4:3 aspect ratio image by the camera sensor. Since the edges of the frame are stretched horizontally, using an attachment lens further stretches the edges of the frame, resulting in an unnatural image.
* Set the camera's image stabilization (HyperSmooth) to [Standard], [High], or [On]. Setting to [Off] will cause vignetting in image corners, and [Boost] will crop the image significantly.
* The FOV/Digital Lenses setting [Wide] in Photo mode causes vignetting in image corners.
* Since this lens provides ultra wide angle of view, it is recommended to set Spot Meter to [ON] when using external lighting source (LED flashlight etc.). Setting Spot Meter to [OFF] may have washout if the external lighting device aims center of the frame.

When using for TG-Tracker
* Activate image stabilization function of the camera while shooting video to avoid vignetting. When taking still images, do not use attachment lens to avoid significant vignetting on image corners.
* Since the camera is designed to offer optimal focusing performance for close range subject, usable range of DoF (depth of field) with this lens is "2cm/0.8in to 15cm/5.9in" and distant subject beyond this range gets blur.

When using for FDR-X3000/HDR-AS300
* Select SteadyShot (Movie) [Act] when shooting video as [Std] and [OFF] cause slight vignetting. Select SteadyShot (Still) [ON] when shooting still image. Excessive camera movement may result vignetting even SteadyShot (Movie) [Act] is selected.
* Set angle of view to [W: Wide] for wide-angle macro shooting that prioritizes angle of view, or [N: Narrow] for magnification-oriented imaging.
