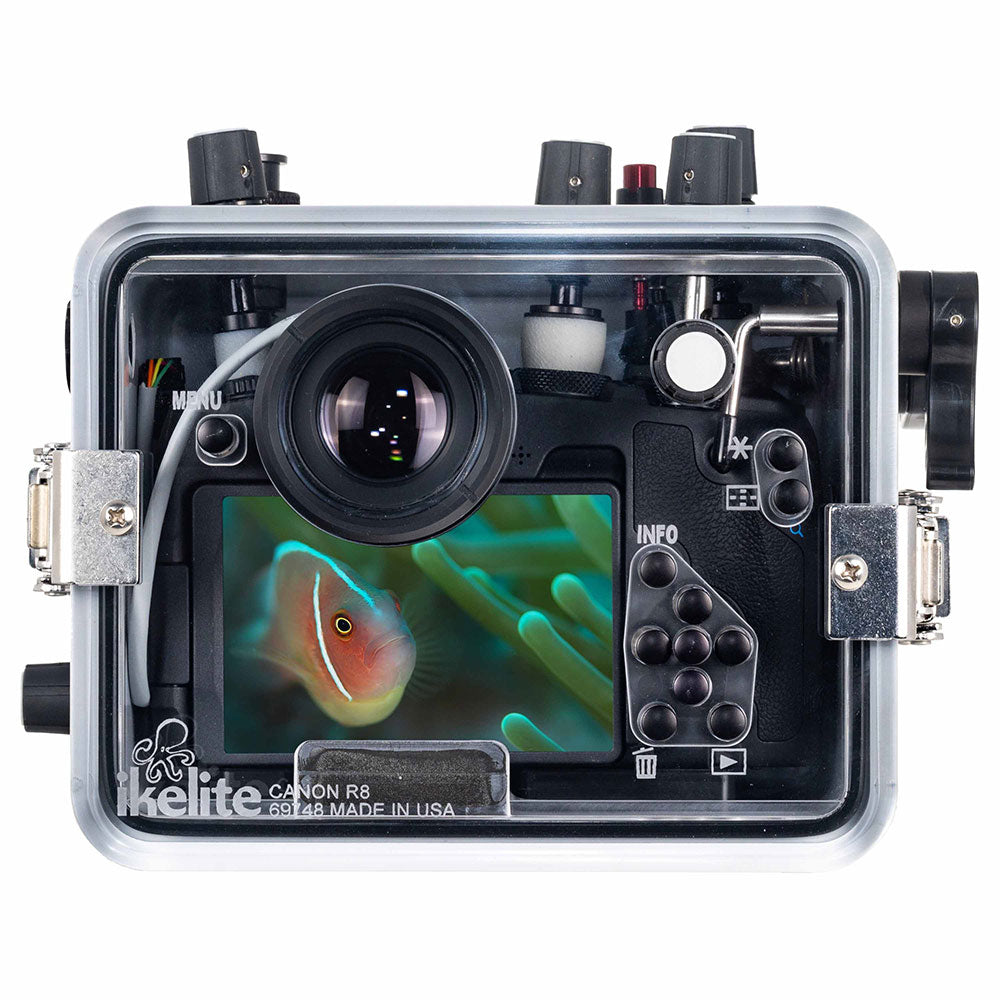

Ikelite 200DLM Underwater Housing is the smallest, most powerful compact mirrorless camera system.
Lens choice, image quality, and autofocus performance, and capture speed are the greatest strengths of the Canon EOS R8 system. When combined with a DS160 or DS230 strobe you can take advantage of high fps burst shooting to capture the perfect moment of a moving subject.
Pre-Dive Checks

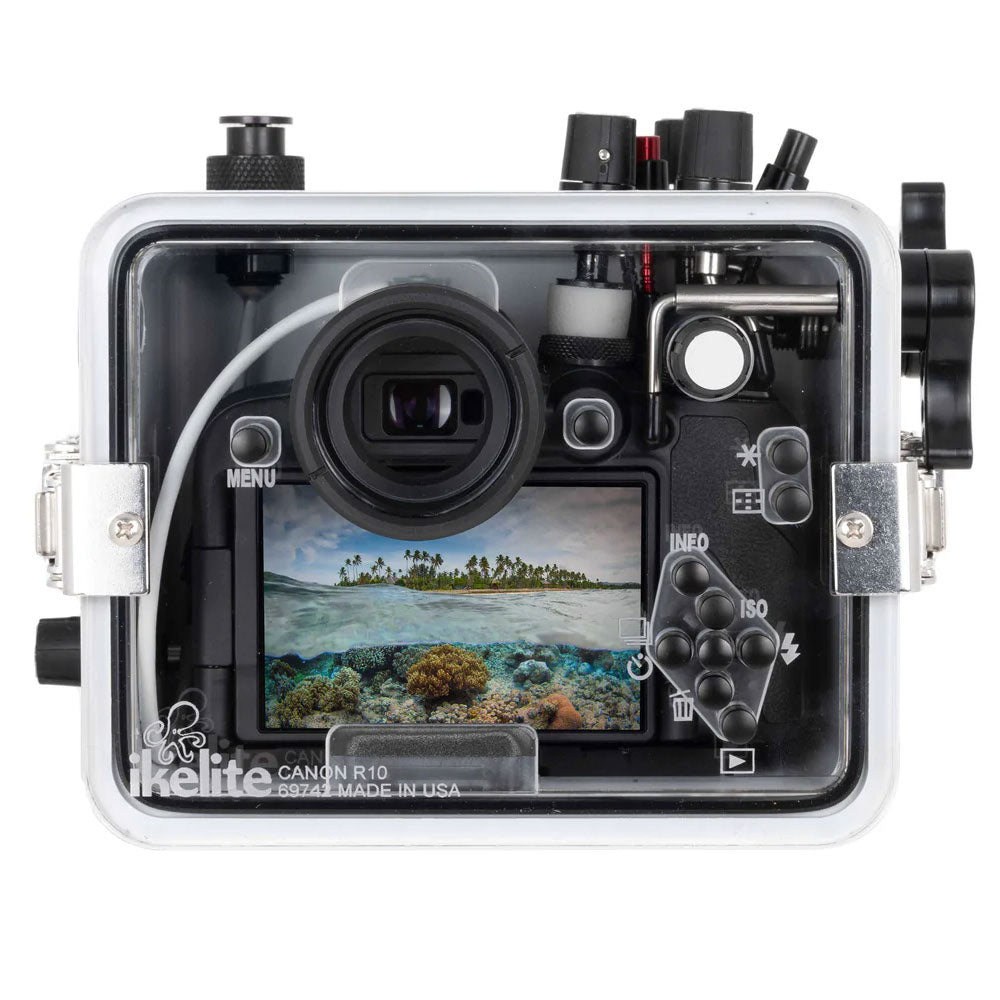

There is no greater assurance than being able to see your camera and o-ring seal through the back of the housing. Our signature open-groove design suspends the rear o-ring in a natural position that is easier to maintain and more reliable than forcing the o-ring into a channel. Once the housing is closed you can see the o-ring form a solid, waterproof seal.
Ikelite recommend adding the optional Vacuum Kit with 1/2" Valve # 47012 to pull a vacuum on the housing and check for leaks prior to entering the water.
Construction
Ikelite specially formulated ABS-PC blend housing is highly durable yet significantly lighter than aluminum. The light color keeps your camera cooler when shooting in warm, sunny environments.
Lens Support

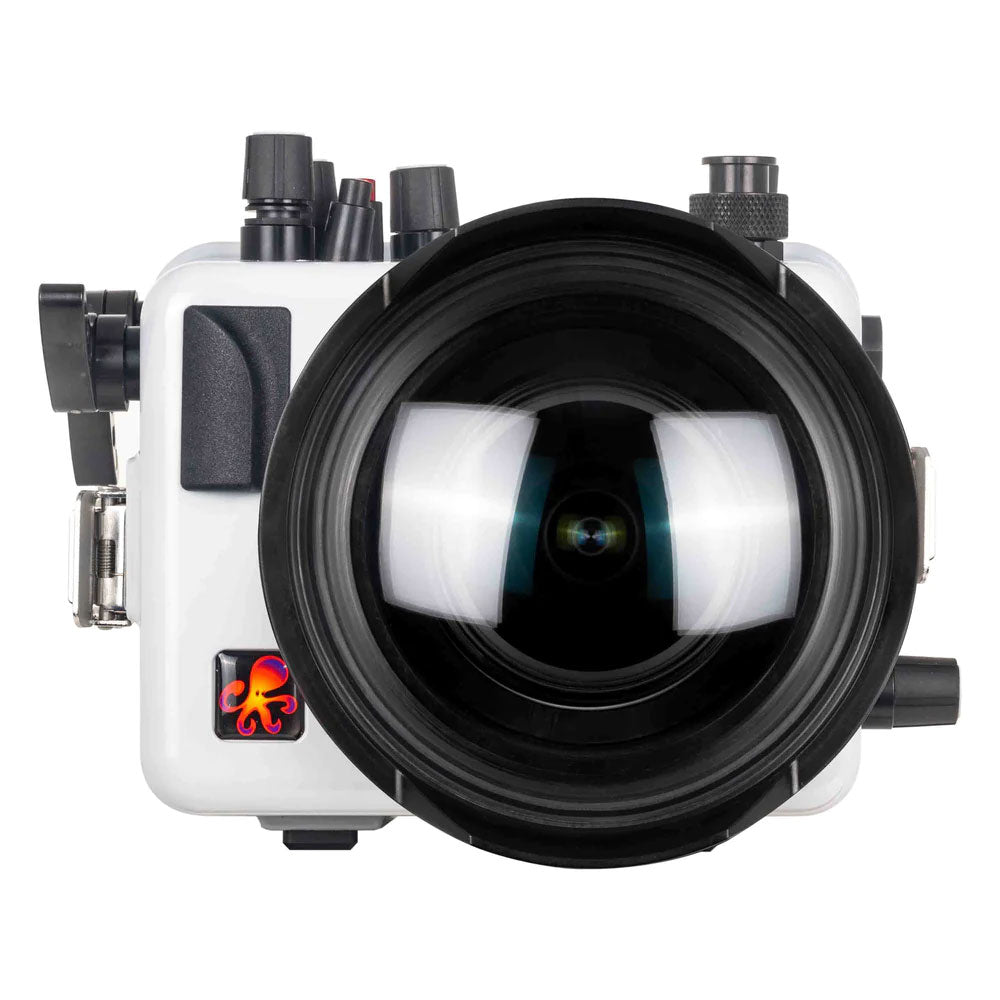

Ikelite DLM lens ports are the lightest on the market, yet robust and capable of standing up to rough surf.
DLM ports support a wide variety of lenses. Most popular zoom lenses and select focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. Zoom and focus gears differ depending on which lens you are using.
Lens ports and zoom gears sold separately. Refer to the appropriate port chart for compatibility information.
Read more:
Wi-Fi Transfer
Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.
compatibility
Unless otherwise noted, this housing does not accommodate the use of add-on grips, battery grips, eyepieces, LCD covers, or other accessories.
Differences in lens and control placement prevent other camera models from being used in or adapted to this housing. We are not aware of any other models which may be used in or adapted to this housing.
Specifications
Strobe Connector: Ikelite ICS-5 Bulkhead with Manual Hotshoe

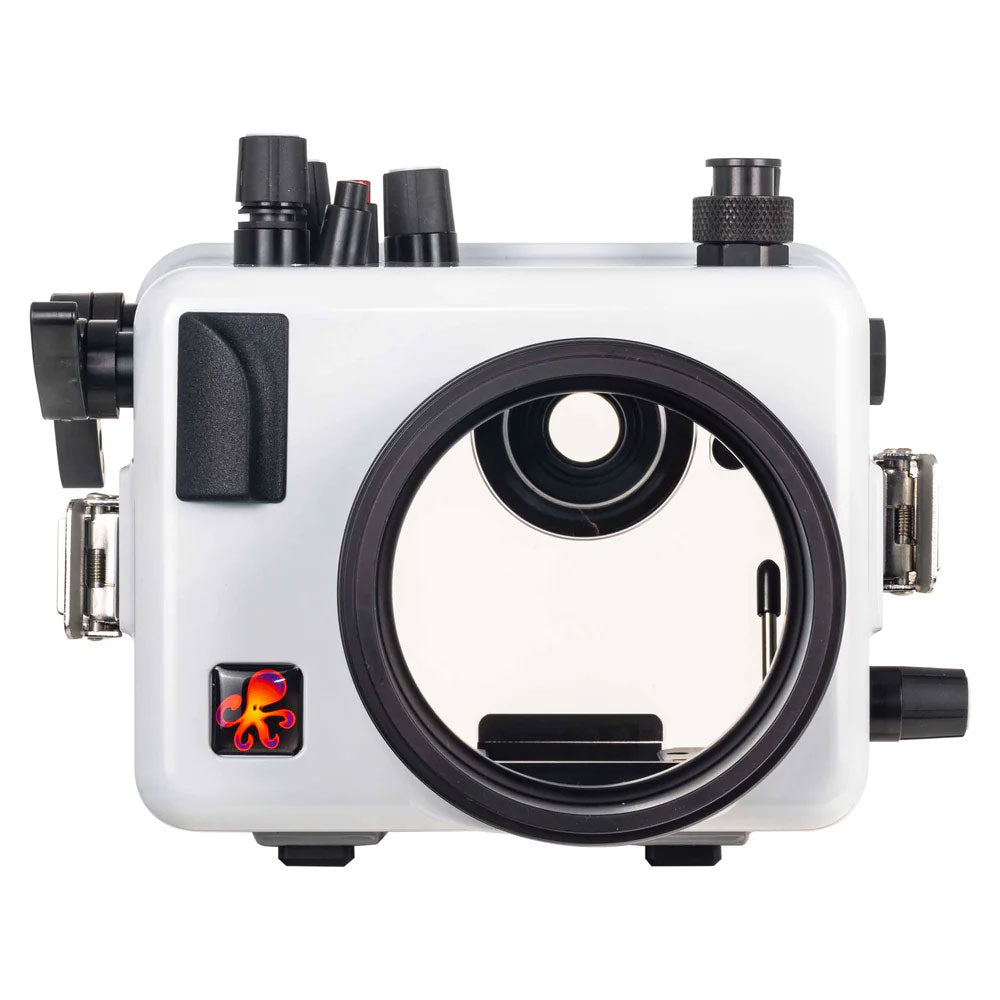

Port Mount: DLM (Dry Lock Micro)
Accessory Port: 1/2-20 Thread
Depth Rating: 200 feet / 60m
Weight: 2.7 ~3 lb / 1,220 ~1,360g
Dimensions: Approx 7.5 x 5.9 x 6 in / 191 x 150 x 152 mm
Item Includes
Housing
Rear O-Ring # 0110 (installed)
Front O-Ring # 0132.36 (installed)
Waterproof bulkhead cap # 9104.7 (installed)
Silicone lubricant 1cc tube
