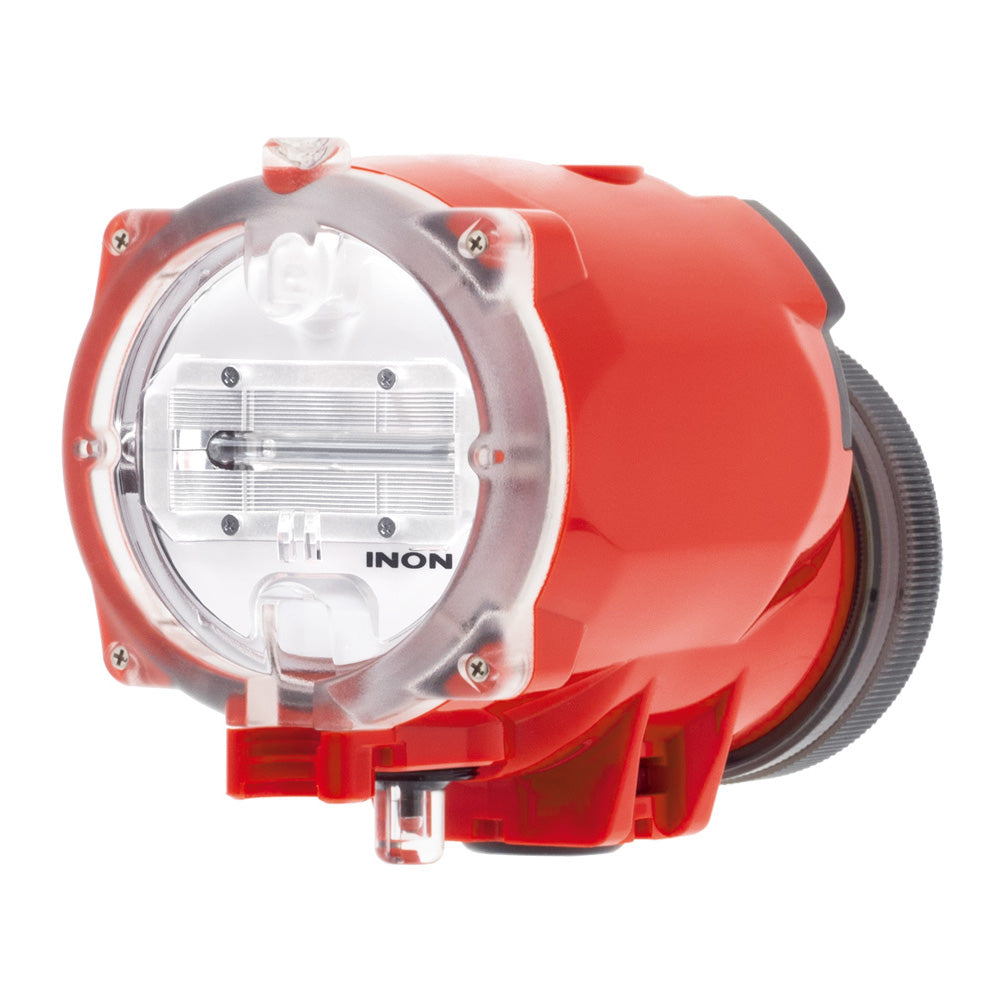

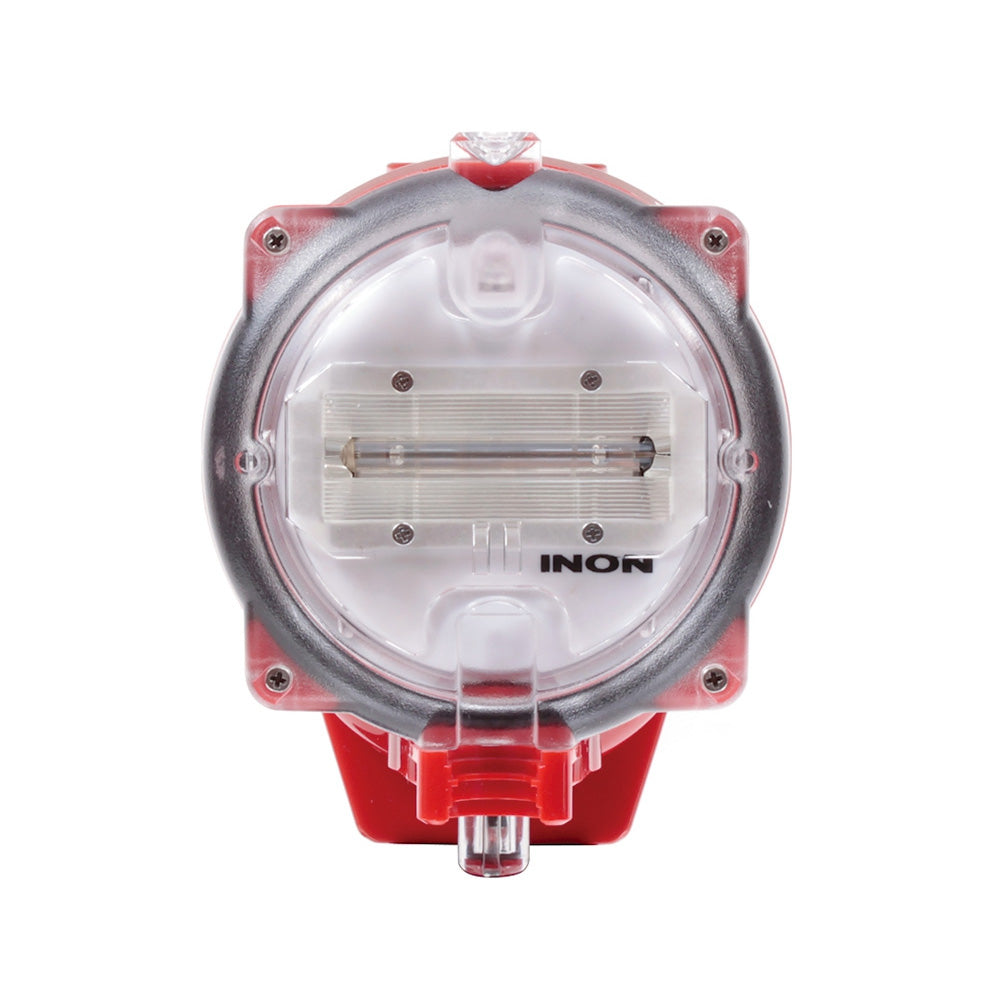

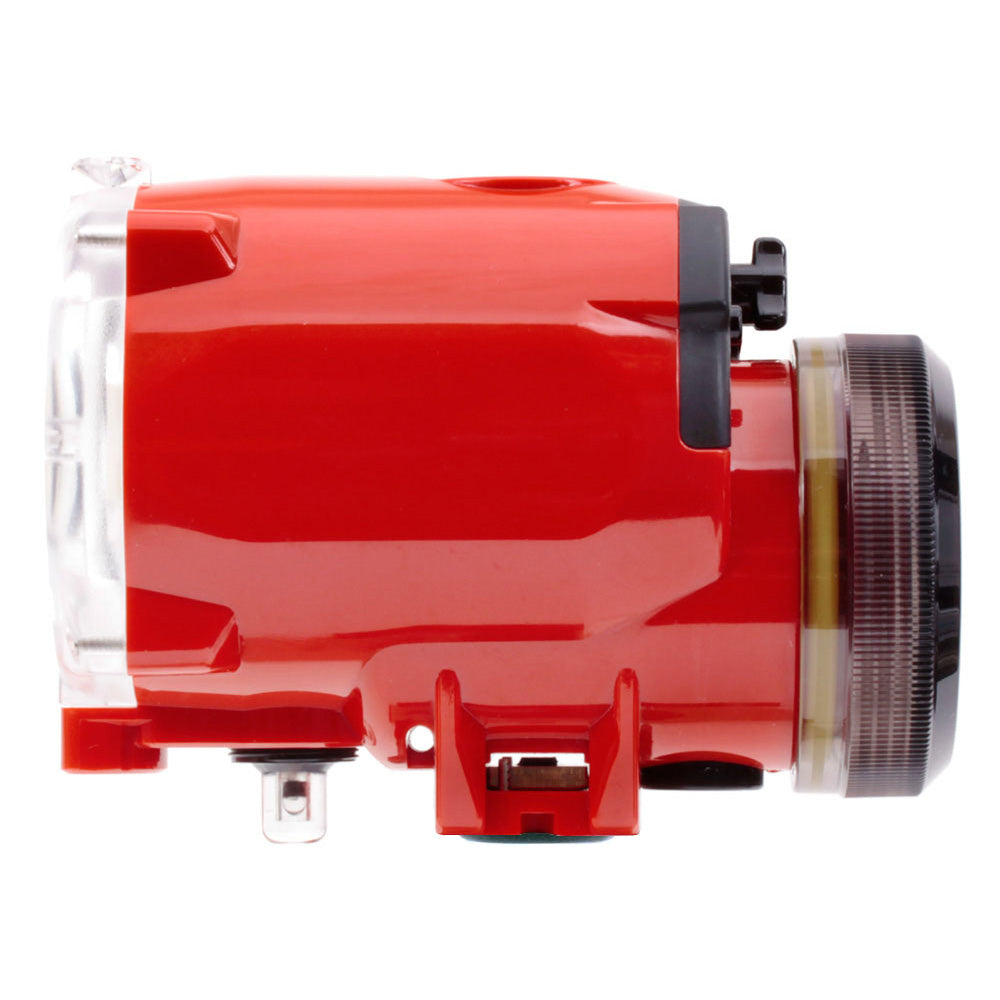

World's Smallest, Best Strobe
Guide number 20, beam angle 105º ×95º without a diffuser, circular 110º light distribution with a diffuser, digital camera compatible highly accurate S-TTL Auto and 12 step Manual mode, rich and fundamental performance is filled in ultra-compact body to exert distinguished mobility.
- Same basic performance comparable to upper model is supported even ultra–compact body
- Guide Number 20.
- Circular 110 degree beam coverage with a diffuser

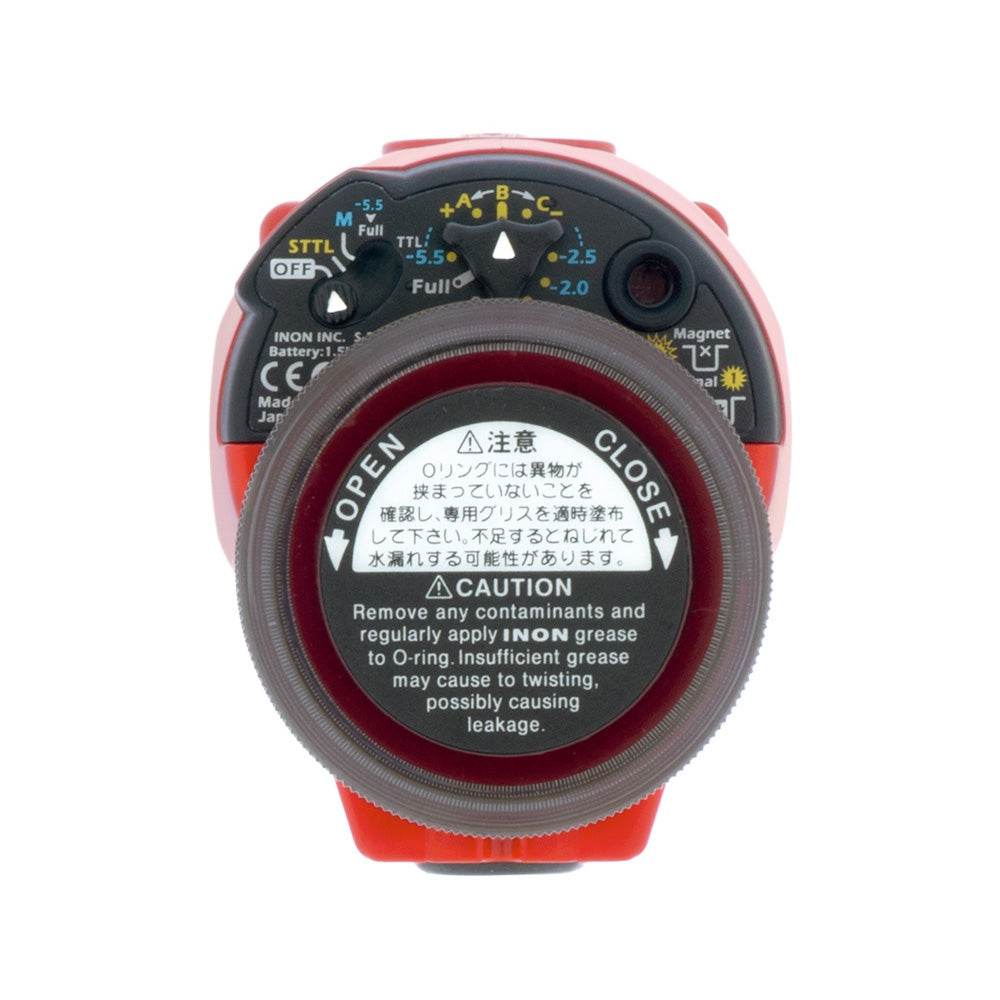

- Precise S-TTL mode & 12 step Manual
- Built-in EV. Controller to fine-tune S-TTL Auto exposure
- On-board wireless TTL capability
- Powerful 4 x AA batteries operation
- Minimum recycle time of 1.5 seconds at full flash
Marginally downsized with high-performance
64 x 83.1 x106.5mm / 2.5 x 3.3 x 4.2in (W x H x D). Successfully designed world smallest body size as 4AA operated underwater strobe with its optimized inner components layout and trimming off unnecessary space. Best suits with a compact digital camera, supporting digital SLR camera with its mobility, incredible compact size even as dual strobes and high performance. The S-2000 totally changes underwater strobe concepts.
Not only compact strobe
The S-2000 is operated by 4x AA batteries to provide fundamental features of strobe though 4x AA batteries operation is hostile to downsizing. The same level of basic performance including Guide Number 20, minimum recycle time 1.5 sec. and durability as upper model are driven with its compact body. In addition to reliable and super accurate , 12 step Manual mode is equipped to support professional use. Other features include the EV. Controller to make fine adjustment when shooting in S-TTL Auto and auto-switching function to accommodate to various pre-flash type (single or double pre-flash) digital camera are on-board as well.
Unlimited expandability with optical cable system
The "S-2000" strobe is equipped with a connector mount on the front side to receive TTL signal of the strobe. One "S-2000" strobe can be linked to maximum two strobes via optical cables and operate them in [S-TTL Auto mode]. This optical cable system benefits you to add [S-TTL Auto] operating strobe easily by connecting with an optical cable to pick up S-TTL control signal is picked up from your camera system. This expandability makes underwater studio with perfect lighting real.
Natural color even with a diffuser
Beam angle without a diffuser is 105º x95º which increase to circular 110º with supplied -0.5 White Diffuser for S-2000. The diffuser is made from customized material not to change color of strobe light where strobe color temperature drops only 100K (Kelvin). You can have same color tone between macro shooting without the diffuser and wide shooting with the diffuser to widen strobe beam angle.
Specifications
Model | INON S-2000 |
|---|
Strobe Control Mode (*1) | S-TTL Auto / Manual / TTL Auto (*3) |
|---|
Connection (*1) | Wireless connection / Optical D Cable / Optical D Slave Cable |
|---|
Guide Number (*2) | 20 [without a diffuser]
17 [with supplied -0.5 White Diffuser] |
|---|
Settable Flash Output (*2) | 20(FULL) 17(-0.5) 14(-1) 12(-1.5) 10(-2) 8.4(-2.5) 7.1(-3) 5.9(-3.5) 5.0(-4) 4.2(-4.5) 3.5(-5) 3.0(-5.5)
(12 steps in 1/2EV increments) |
|---|
Beam Angle | 105°(horizontal) x 95°(vertical) [without a diffuser]
110° x 110°circular beam [with supplied -0.5 white diffuser] |
|---|
Color Temp. | 5500K [flash light, without a diffuser]
5400K [flash light, with supplied -0.5 white diffuser] |
|---|
Recycle Time
(*4)(*5) | Approx. 1.5 seconds minimum: ["eneloop" batteries (*6)]
Approx. 1.5 seconds minimum: [NiMH batteries (*7)]
Approx. 1.6 seconds minimum: [Alkaline batteries]
Approx. 2.1 seconds minimum: [Lithium 1.5V batteries] |
|---|
Flash Capacity
(*4)(*5) | Approx. 450 flashes: ["eneloop" batteries (*6)]
Approx. 570 flashes: [NiMH batteries (*7)]
Approx. 430 flashes: [Alkaline batteries]
Approx. 670 flashes: [Lithium 1.5V batteries] |
|---|
Compatible
Batteries | AA "eneloop" (BK-3MCC) [recommended] x 4
AA "eneloop pro" (BK-3HCD) [recommended] x 4
AA NiMH x 4 [good quality] (*7),
AA Alkaline x 4,
AA Lithium (1.5V) x 4
*Manganese batteries not compatible |
|---|
Dimensions | Diameter: 64mm / 2.5in. Height: 83.1mm / 3.3in. Depth: 106.5mm / 4.2in.
(*Including Slave Sensor and Arm Base) |
|---|
Weight | [air] 295g / 10.4oz (without batteries)
[underwater] Approx. 69g / 2.4oz (with 4 "eneloop" batteries) |
|---|
Working Temperature | 0°C - 30°C / 32°F - 86°F [water temperature] |
|---|
Storage Temperature | 0°C - 30°C / 32°F - 86°F [air temperature] +50°C / 122°F (temporary allowable temperature limit) |
|---|
Depth Rating | 100m / 328ft |
|---|
Body Material / Color | Polycarbonate resin / red |
|---|
(*1) Flash modes / connection method is vary depending on camera system. Also flash mode is vary depending on connection method. Please refer to respective sections of the user manuals for detail.
(*2) Measurement in air / ISO100 · m, Nominal value
(*3) Only compatible when connecting to TTL operation INON strobe (*8) by "Optical D Slave Cable Connection".
(*4)Measured with FULL strobe output at 30-second intervals with both Focus Light (Z-240,D-2000) and Advanced Cancel Circuit OFF, at 25 °C / 77 °F giving 10 minutes cooling period every 50 flashes.
(*5) Recycle Time / Flash Capacity / Focus Light operable duration (Z-240,D-2000) based on INON test data. Actual values may vary depending on battery manufacturer, battery type and age.
(*6)Including listed "new generation" NiMH batteries ("eneloop" type) having less self-discharging and heat generation charactistic comparing to "conventional" or "high-capacity" NiMH and confirmed compatibility by INON INC,.
(*7) Some "conventional" or "high-capacity" NiMH rechargeable batteries have significant self-discharge and heat-generatinmg characteristic resulting difficulty to keep their performance during usage. We recommend to use recommended batterie.
(*8) S-2000, Z-240, D-2000, D-2000S, D-2000W, D-2000Wn
Item Includes
- S-2000 strobe
- -0.5 White Diffuser
- Magnet
- Magnet Screw
- Spare O-ring (Battery Box)
- INON Grease
- Wireless Connection Kit
- User manual
